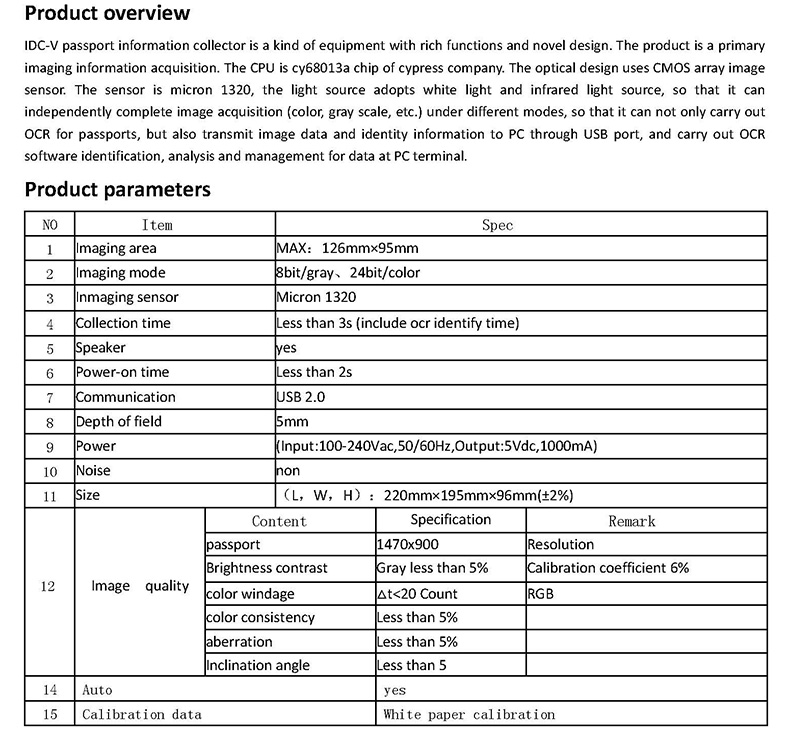

NO

Item

Spec

1

Imaging area

MAX：126mm×95mm

2

Imaging mode

8bit/gray、24bit/color

3

Inmaging sensor

Micron 1320

4

Collection time

Less than 3s (include ocr identify time)

5

Speaker

yes

6

Power-on time

Less than 2s

7

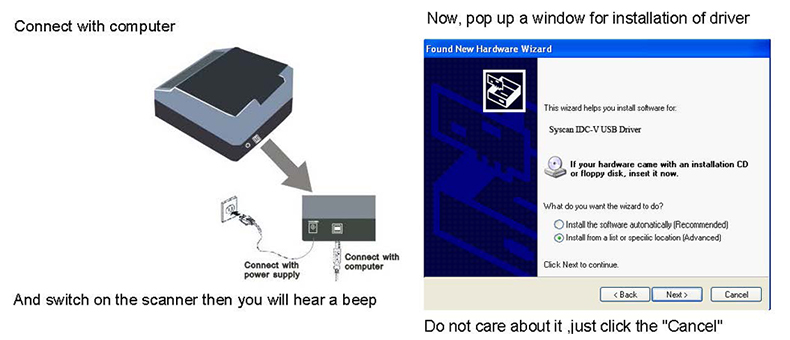

Communication

USB 2.0

8

Depth of field

5mm

9

Power

(Input:100-240Vac,50/60Hz,Output:5Vdc,1000mA)

10

Noise

non

11

Size

（L，W，H）：220mm×195mm×96mm(±2%)

12

Image quality

Content

Specification

Remark

passport

1470x900

Resolution

Brightness contrast

Gray less than 5%

Calibration coefficient 6%

color windage

△t<20 Count

RGB

color consistency

Less than 5%

aberration

Less than 5%

Inclination angle

Less than 5

14

Auto

yes

15

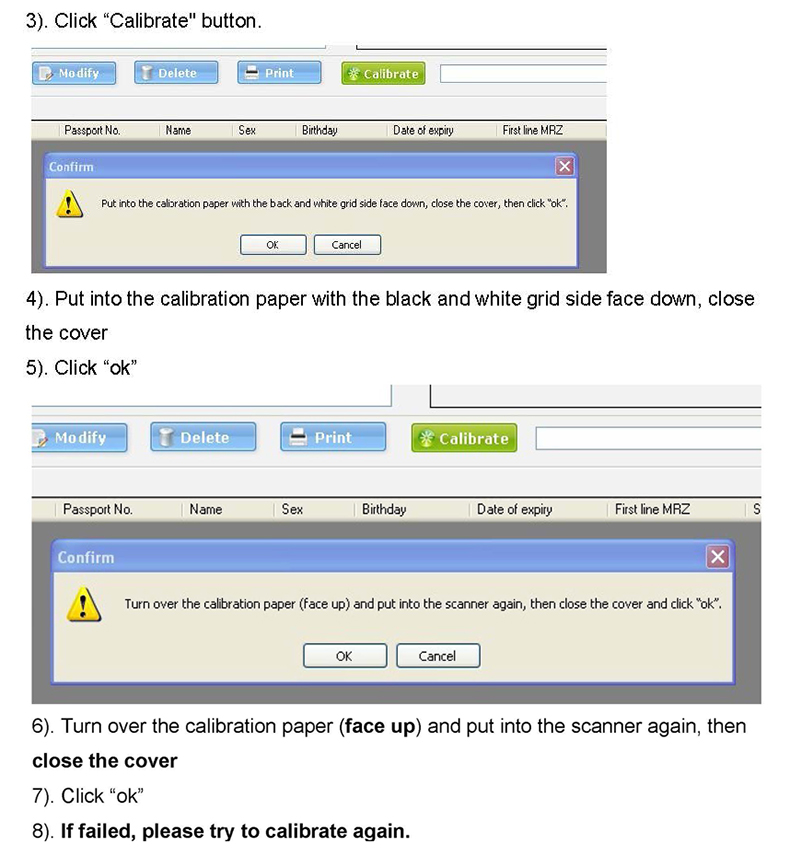

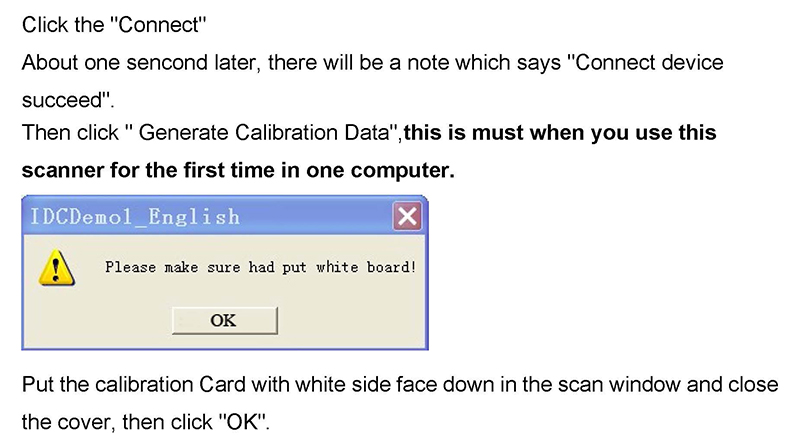

Calibration data

White paper calibration
